Positioning blister is an upgraded high-precision version of traditional vacuum blister technology. Ordinary blister products are usually printed after molding, which easily causes pattern stretching, deformation and position deviation. In contrast, positioning blister adopts the core logic of precision printing and positioning first, then vacuum forming.
Manufacturers print complete graphics, logos and textures on flat PVC, PET or PP sheets in advance with standard positioning cross marks. The machine recognizes the reference points for accurate alignment before heating and vacuum forming. The printed patterns perfectly fit the 3D concave-convex structure without shifting, blurring or deformation.
Positioning blister relies on three core technologies: pre-print positioning, machine vision alignment and vacuum thermoforming. The standard process is as follows:
Sheet layout and design
According to the 3D structure of the blister product, expand the flat size and complete graphic layout, meanwhile printing professional positioning reference marks.
High-precision flat printing
Adopt screen printing, offset printing or digital printing on flat sheets to ensure full color and clear details, avoiding the defects of curved surface printing.
Machine vision positioning
The equipment automatically identifies positioning marks, calibrates positions and corrects errors to ensure one-to-one correspondence between patterns and mold structures.
Heating and vacuum forming
The plastic sheet is heated evenly and softened, then tightly adsorbed on the mold surface by vacuum negative pressure, and shaped with 3D stereo structure after cooling and curing.
Cutting and finishing
Precise cutting and edge trimming are performed according to the positioning track to finish high-quality blister products with accurate pattern alignment.
Process Sequence: Ordinary blister forms first and prints later; positioning blister prints first and forms later.
Pattern Effect: Ordinary blister suffers from stretching, offset and blurry details; positioning blister features zero deformation, clear lines and accurate color restoration.
Precision Stability: Ordinary blister has poor batch consistency; positioning blister maintains high precision and stable yield via intelligent positioning system.
Product Grade: Ordinary blister is only for basic protection; positioning blister presents premium 3D stereo visual effect for high-end customization.
High Precision & Zero Deformation: Flat printing completely avoids curved printing defects. Tiny texts and fine patterns are perfectly displayed without stretching or offset.
Premium Texture & Rich Color: Patterns are printed on flat sheets with uniform and saturated colors. The integration of graphics and 3D structure creates unique stereoscopic visual impact.
Stable Mass Production: Standard positioning forming ensures consistent product effect in batches, suitable for large-scale high-end customization.
Diverse Design Compatibility: Supports full-page printing, partial patterns and gradient designs, breaking the single appearance limitation of traditional blister.
Positioning blister is widely used in fields requiring high appearance quality and precise pattern alignment:
High-end cosmetic blister packaging and inner trays

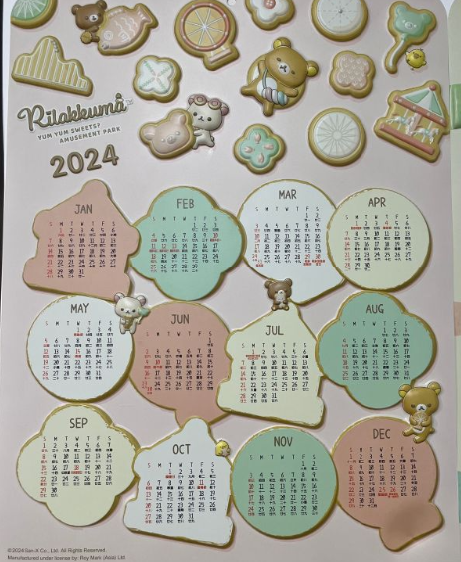

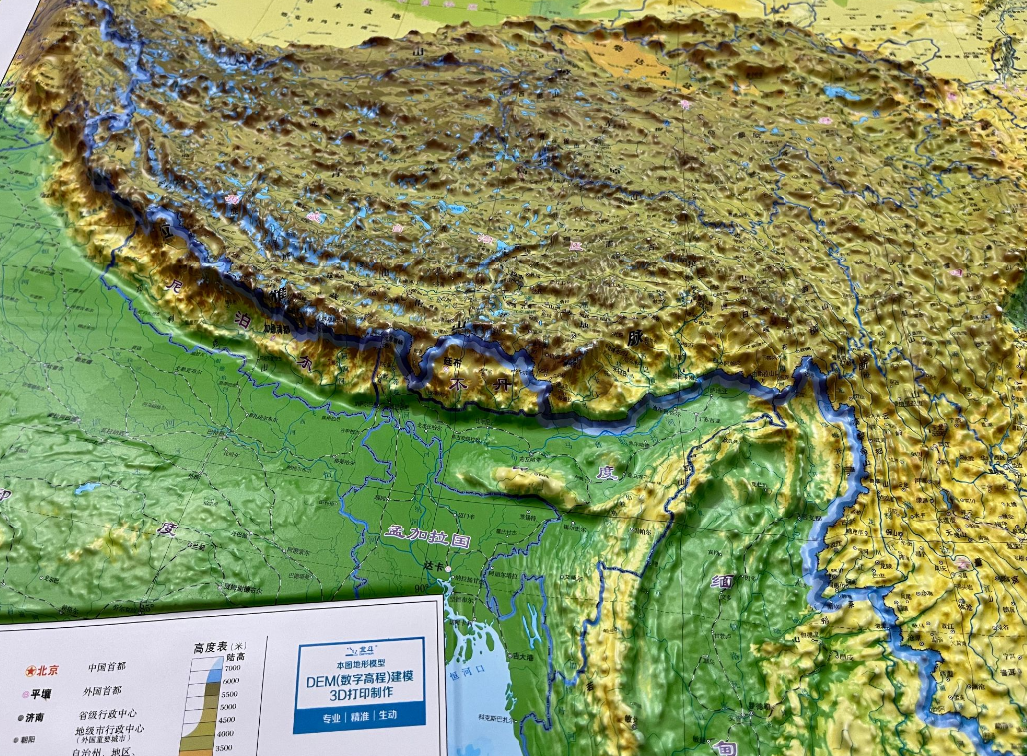

Cultural and creative products, 3D decorative crafts and festival ornaments
Precision blister trays for digital and electronic products
Toy model, figure packaging and premium gift blister

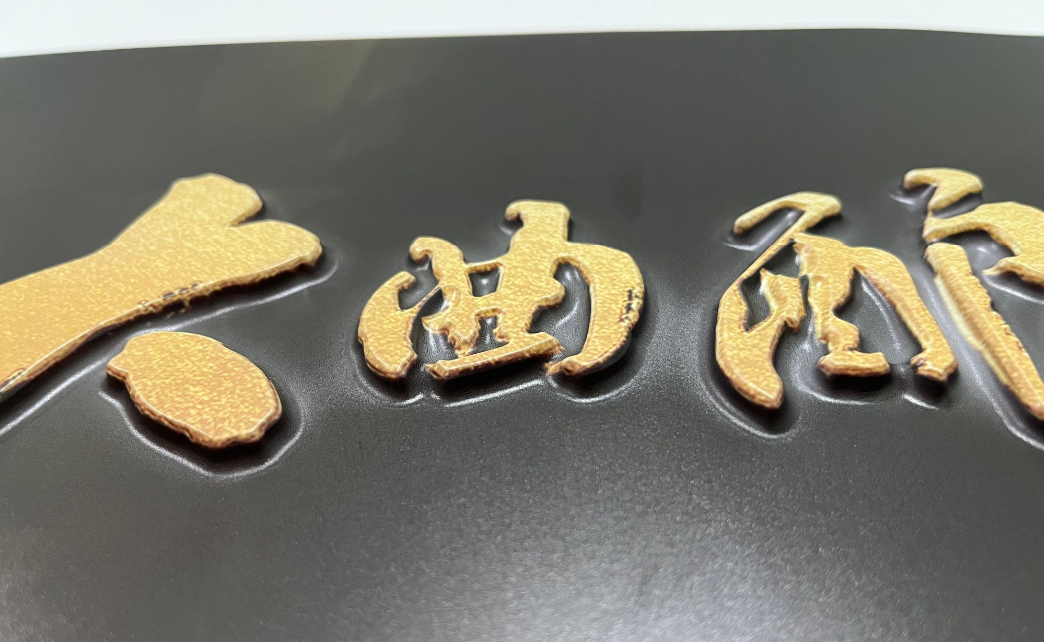

Brand display blister, stereo advertising signs and special-shaped display products
As an upgraded high-end technology of traditional blister, positioning blister solves the core pain points of ordinary blister such as pattern deformation and low precision through the "print first, form later" process. It perfectly combines printing accuracy and 3D blister structure, balancing protection and aesthetics, and has become an indispensable process in high-end packaging, stereo cultural creativity and premium display industries.
